Aquamate Water Tanks
Since 1986, AQUAMATE® has manufactured and installed thousands of Poly Lined Steel Water Tanks in sizes from 26,000 to 292,000 litres.
With more than 30 years of research and development, an AQUAMATE® Steel Water Tank is the first choice for Durable, Reliable and Affordable large volume water storage. AQUAMATE® offers a 20 year “No Service Costs” Warranty, both in Australia and in the US.
AQUAMATE® has been manufacturing Galvanised Water Tanks for over 30 years. We engineer Metal Water Tanks from our state of the art facility in Adelaide. Our steel water tanks and our liners undergo rigorous testing in this, world-class facility. For our metal water tanks we use a galvanised tank shell, rather than a ZINCALUME® shell, which means no sacrificial anodes. Our metal water tanks have three main applications. They are used as rainwater storage tanks, fire tanks, and farm water tanks.
What makes an Aquamate large water tank different?
Galvanised Tank Shell
The combination of lightweight steel and heavy duty galvanising make AQUAMATE® tanks shells perfectly suited to water storage. By using lightweight thin-gauge steel panels, AQUAMATE® tanks have all of the required strength without the excess cost. All tank panels are coated with a heavy galvanised layer, with three times the coating weight of typical zinc-aluminium alloy coatings.

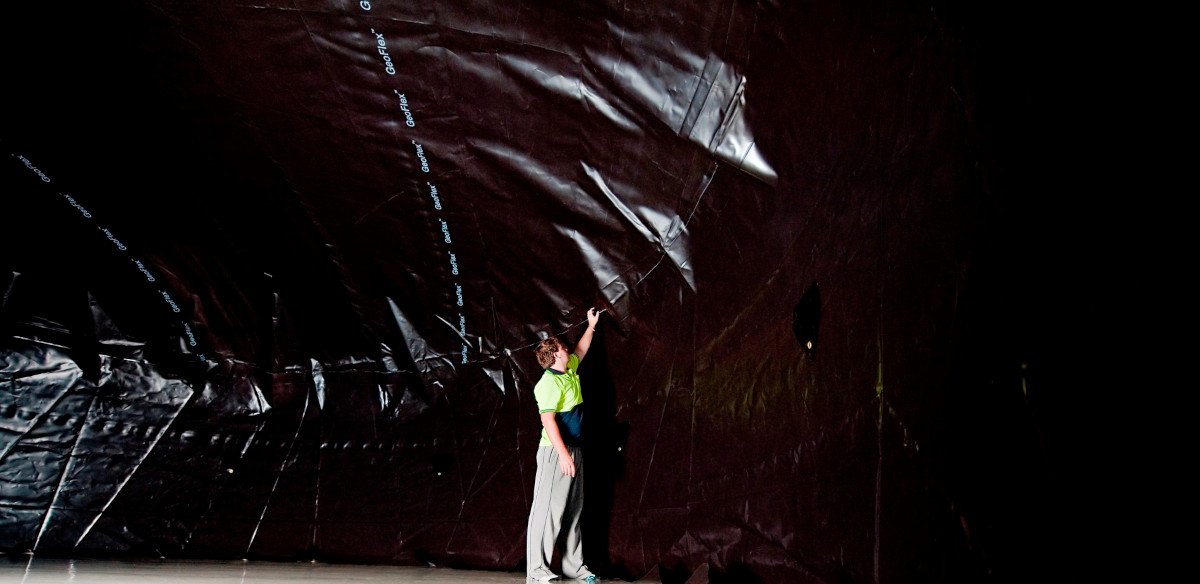

Flexible Polyolefin Tank Liner
AQUAMATE® use a specially blended polymer for all of our tank liners. The unsupported polyolefin that AQUAMATE® use is flexible, resistant to fatigue cracking and super stretchy – all things you need for a durable water tank. Manufactured in-house at AQUAMATE®’s state-of-the-art production facility in South Australia, the quality of our tank liners is the reason we can offer a 20 year no-leaks guarantee.
Standard Tank Range – 2.2m Tank Shell Height
| Tank Code | Volume | Diameter | Height |
| AR3D039 | 26,300L | 3.9M | 2.2M |
| AR3D052 | 46,700L | 5.2M | 2.2M |
| AR3D065 | 73,000L | 6.5M | 2.2M |
| AR3D078 | 105,100L | 7.8M | 2.2M |
| AR3D091 | 143,100L | 9.1M | 2.2M |
| AR3D104 | 186,900L | 10.4M | 2.2M |
| AR3D117 | 236,500L | 11.7M | 2.2M |
| AR3D130 | 292,000L | 13M | 2.2M |
Standard Colour Range
* Although every attempt has been made to replicate the colour supplied, the colour sample shown here is for demonstration purposes. Refer to an Aquamate Sample for accurate colour matching.
† Equivalent colour names listed are trademarks of BlueScope Steel Limited and used only for comparison. The use of colour names in any Aquamate document indicates no more than the colour of the product supplied or a colour equivalency.
Colours supplied are a closest match. In some cases the finish of the tank will have some slight variation based on the differences in the production process.
| INCLUDED FEATURES |
| 1 x LEAF FILTER BASKET 1 x LOCKABLE ACCESS HATCH 1 x 90mm or 150mm OVERFLOW 1 x 50mm POLY OUTLET & METAL BALL VALVE FLEXIBLE POLYETHYLENE LINER GALVANISED ROOF TRUSSES 20 YEAR PRO RATA WARRANTY |
Pricing: Contact us for full range pricing or an individual quote.
Exclusions
- Site and Base Preparation
However, we are able to quote to prepare your pad as well. Taztanks Civil Contracting prepare all their Tank Bases to meet the industry standard requirements needed to install your tank effectively and efficiently.
See our Pad Preparation page for more information or organise a site inspection so we can price the base with your water tank quote.
Brochure (2.7 MB)
